GeoConverters does not convert inner rings of GeoJsonPolygon

[lennertdefeyter]

Hi,

I noticed that the GeojsonPolygonconvertor does not convert the inner rings. If you want to convert a polygon with holes. It only looks at the outer ring.

This is very apparent in the code in line 759 of GeoConverters.java.
static GeoJsonPolygon toGeoJsonPolygon(List dbList) { return new GeoJsonPolygon(toListOfPoint((List) dbList.get(0))); }

As you can see, it only looks at the first item in the list of rings (e.g. the outer ring).

I've already fixed it with a custom convertor (see attachment, although this is for multipolygons), but it might be nice to have this in the core.

I think that in order to fix it, the toGeoJsonPolygon(List dbList) function in GeoConverters.java needs to change to:

static GeoJsonPolygon toGeoJsonPolygon(List dbList) { Iterator<GeoJsonLineString> it = ((List) dbList).iterator(); GeoJsonPolygon g = new GeoJsonPolygon(toListOfPoint((List) it.next())); while (it.hasNext()) g = g.withInnerRing(toListOfPoint((List) it.next())); return g; }

GeoJsonMultiPolygonDeserializer.java.txt
.

[christophstrobl]

Which version are you using? It would be great if you could please take the time to provide a complete minimal sample (something that we can unzip or git clone, build, and deploy) that reproduces the problem.

[spring-projects-issues]

If you would like us to look at this issue, please provide the requested information. If the information is not provided within the next 7 days this issue will be closed.

[lennertdefeyter]

Hi @christophstrobl ,

Sorry for the delay. This is version 2.7.2.

Attached is a zip that should show the problem.

it inserts a polygon correctly with a donut hole in the center: outer ring is a box with bounds: 0,0 -> 10,10 . Inner ring is a box 4,4 -> 6,6

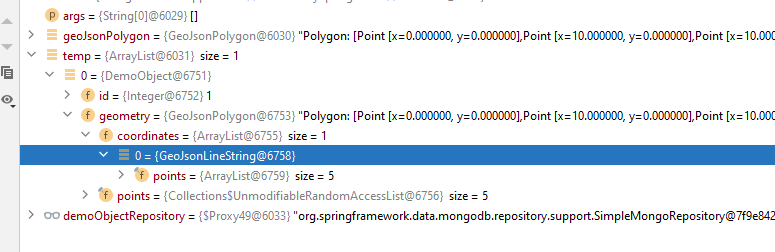

It is stored correctly in the database. But when querying it clearly has only the outer ring:

mongodbdemo.zip

Thank you for your help.

[christophstrobl]

Sorry for long silence - good catch! Thank you for the reproducer!

[lennertdefeyter]

@mp911de
Hi,

Thank you in advance for the help! Unfortunately this will only fix the issue if it has only one donut hole. A lot of polygons have multiple, for example, if you have a layer for all countries in the world, Italy would have holes for San Marino and Vatican city.

For an example on a full fix, you can reference the deserializer I added in the original post. Otherwise I'll try to make my own PR this weekend.

Kind regards and again thank you for your time,

Lennert

[mp911de]

Thanks for reviewing. We have a release planned for Monday, so the earlier we get a patch the more likely we can include it. Am 14. Sept. 2022, 14:24 +0200 schrieb lennertdefeyter ***@***.***>:

…

@mp911de Hi, Thank you in advance for the help! Unfortunately this will only fix the issue if it has only one donut hole. A lot of polygons have multiple, for example, if you have a layer for all countries in the world, Italy would have holes for San Marino and Vatican city. For an example on a full fix, you can reference the deserializer I added in the original post. Otherwise I'll try to make my own PR this weekend. Kind regards and again thank you for your time, Lennert — Reply to this email directly, view it on GitHub, or unsubscribe. You are receiving this because you were mentioned.Message ID: ***@***.***>
