scattermapbox plot doesn't update with change in pandas dataframe in a callback

[kevalshah90]

I am slicing a pandas dataframe based on user input. While the callback runs and I see that the dataframe is updated, the changes aren't reflected on the map. I am passing a pandas series at lat and lon and the map should be updated with the DataFrame. Below is simplified version of my code:

import dash_bootstrap_components as dbc
import dash
from dash import dcc
import pandas as pd

import plotly.express as px

df = px.data.carshare()


layout = html.Div([

                                  dcc.Graph(id="map"),
                                  dbc.Input(id='input'),
                                  dbc.Button("Apply", id="show", className="mr-1", n_clicks=0)

               ])

# Update map graph
@app.callback(Output("map", "figure"),
                          [

                            Input("Input", "value"),
                            Input("show", "n_clicks")

                         ],
                        )
def update_map(input, btn_nclick):

    # check for triggered inputs / states
    ctx = dash.callback_context

    data = []

    if input:

       df = df[df['peak_hour'] == 11]

       data.append({

                        "type": "scattermapbox",
                        "lat": df['centroid_lat'],
                        "lon": df['centroid_lon'],
                        "mode": "markers",
                        "marker": {

                                            "symbol": "circle",
                                            "size": 9,
                                            "opacity": 0.8,

                            }
                     }
        )

       layout = {

                 "autosize": True,
                 "datarevision": 0,
                 "hovermode": "closest",
                 "mapbox": {

                     "accesstoken": MAPBOX_KEY,
                     "bearing": 0,
                     "center": {
                         "lat": coords[0],
                         "lon": coords[1]
                     },
                     "pitch": 0,
                     "opacity": 0.2,
                     "zoom": zoom,
                     "style": "streets",

                 },

                 "margin": {
                    "r": 0,
                    "t": 0,
                    "l": 0,
                    "b": 0,
                    "pad": 0
                }

    }

   return ({"data": data, "layout": layout})

Trying to wrap my head around why the map not being updated with change in pandas DataFrame.

[Coding-with-Adam]

A similar issue was reported by Yaseen, a community member.

The code renders a button and a dcc.Graph whose figure is a go.Figure with a trace of go.Scattermapbox.

The purpose is to generate markers (in random locations). The number of makers should match the number of clicks.

The issue is that the figure data gets updated in the callback, yet the new markers are not rendered.

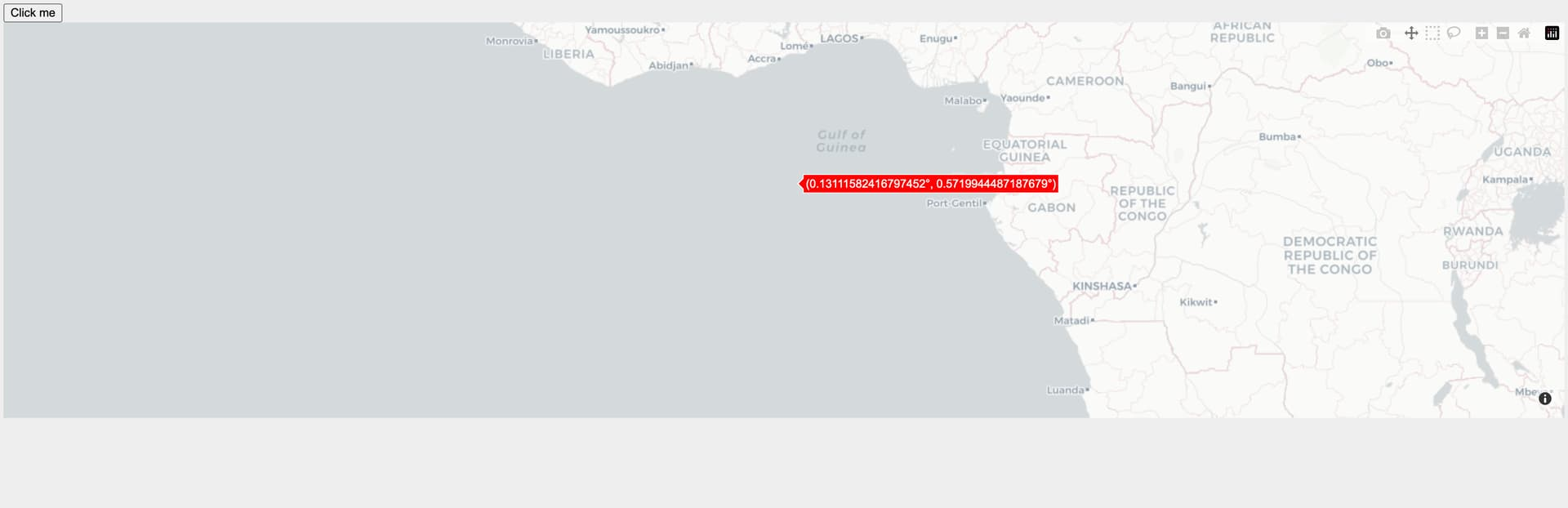

Weirdly enough, you can still hover over them as shown in this screenshot:

import pandas as pd
import plotly.graph_objects as go
import numpy as np
import dash
from dash import dcc, html, Input, Output, callback, State


def generate_map(N):
    fig = go.Figure()
    df = pd.DataFrame({"lat":np.random.random(N), "lon":np.random.random(N)})

    fig.add_trace(
        go.Scattermapbox(lat=df.lat, lon=df.lon, mode="markers", marker=dict(size=15, color="red"))
    )

    fig.layout.update(title={
        'xanchor': 'center',
        'yanchor': 'top'
    },
        showlegend=False,
        margin={
            "r": 0,
            "t": 0,
            "l": 0,
            "b": 0
        },
        mapbox=go.layout.Mapbox(
            uirevision="foo",
            style="carto-positron",
            zoom=3,
            center_lat= np.random.random(),
            center_lon= np.random.random(),
        ))

    return fig




app = dash.Dash(__name__)
app.layout = html.Div(
    children=[
        html.Button("Click me",id="btn",n_clicks=0),
              dcc.Graph(id="orders-map",
                        style=dict(height="100%",width="100%"))]
)



@callback(
    Output("orders-map","figure"),
    Input("btn","n_clicks"),
    State("orders-map","figure")
)
def update_map(n_clicks, old_figure):
    print(f"updated using {n_clicks}")
    if old_figure:
        print("Old data:", old_figure['data'])
    new_figure = generate_map(n_clicks)
    print("New data:", new_figure['data'])
    return new_figure


if __name__ == '__main__':
    app.run_server(debug=True, port=9090)

[Coding-with-Adam]

Comment from the community member:

I double-checked and I confirm that the example above works with dash==2.6.1 and dash==2.6.2
It does not work, however, with dash>=2.7.0.

[vprzybylo]

I ran into this same issue with the hover updating but the scatter points in the previous location and switching from dash==2.7.0 to dash==2.8.1 solved it.

[kevalshah90]

@vprzybylo good to know. what's your plotly.js version? I am getting the issue with vdash==2.8.1

[vprzybylo]

I'm using plotly==5.11.0 in python

[archmoj]

I ran into this same issue with the hover updating but the scatter points in the previous location and switching from dash==2.7.0 to dash==2.8.1 solved it.

Thanks @vprzybylo.
@kevalshah90 could you please try latest plotly.py or dash==2.8.1 and possibly close the issue if resolved?

[kevalshah90]

It is not working for me with dash==2.8.1 and plotly==5.11.0 | 5.13.0, the latest version of plotly. It works for me with dash==2.6.2

@vprzybylo @archmoj

[archmoj]

@kevalshah90 thanks for trying that out.
This is likely a bug in plotly.js.
To help us debug the issue,
would you please make a codepen using your setup as described here: plotly/plotly.js#6444 (comment) ?

[fontempa]

Is there any update regarding this issue? I've been having the exact same problem since last week, and been struggling for two days until I came with this post. I made the test with dash==2.7.0, then dash==2.8.1, and then dash==2.6.2 and gives me the same results: the figure actually gets updated, but the markers are not (however, you can hover over them and see the info of it)

[artdreamer]

I'm experiencing the same issue, and I hope someone can help me resolve it. Upon further investigation, I believe this may be related to the recent introduction of the cluster effect in Dash 2.7.0. In addition, I noticed another issue related to the cluster effect: enabling it for scatter plot traces makes the restyleData property valid.

[tomboehling]

fyi: plotly/plotly.js#6444 (comment)

[Coding-with-Adam]

This bug has been fixed in the latest version of Dash (v2.10.2).

[wknjk]

In version 2.11.1 of Dash, the dataframe is not being updated when clustering is set to True. However, it works properly when clustering is set to False.

[ruaridht]

Regarding the specific issue referenced in the above comment: #3631 (comment)

The update appears to work for me in Dash v2.12.1 and not in v2.13.0. Does anyone else also experience this issue again ?

[Coding-with-Adam]

hey @ruaridht
I just upgraded Dash to v2.13.0 and I don't get the bug on my windows machine. The code from comment #3631 works just fine for me.
