ESP8285 ESP M1

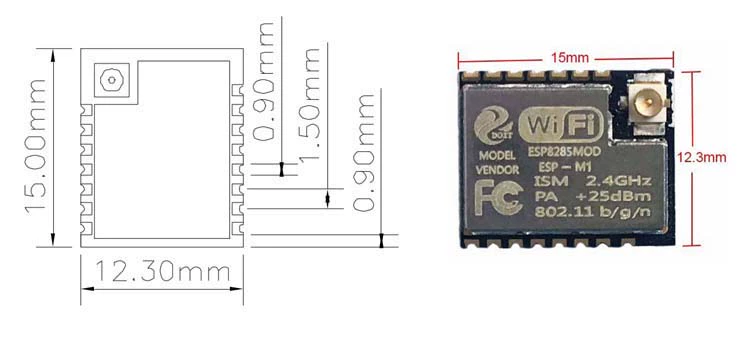

Because of the ultra-small size, ESP-M1/ESP-M2 is now very popular for many people. Moreover, this two modules are based on ESP8285 chip. Compared to the previous modules (e.g., ESP-F, ESP-S, and ESP-E), which are based on ESP8266 chip, the differeces are obvious and listed as follows.
- Small size;
- Bearable a higher temperature (about +125℃), but ESP8266 is just +85℃;
- The original ESP8266 code can be used on this modules (based on ESP8285, DO NOT change any code);
- Support serial transpent transmission;
- Support long distance with ultra-low power;
- Support a onboard antenna (For ESP-M1).
We also get the CE/FCC/RoHS certifications, please clike it: click me.
The WiFi module ESP-M is manufactured by using a high-performance chip ESP8285. This small chip is encapsulated an enhanced Tensilica’s L106 diamond series 32-bit kennel CPU with a SRAM. Thus, ESP8285 has the complete function Wi-Fi function; it not only can be applied independently, but can be used as a slaver working with other host CPU. When ESP8285 is applied as a slaver, it can start from the onboard Flash. The built-in high-speed buffer is not only benefit to improve the system performance, but optimize the store system. In addition, ESP8285 can be used as Wi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to other MCU design. The ESP-M module supports the standard IEEE802.11 b/g/n/e/i protocol and the complete TCP/IP protocol stack. User can use it to add the WiFi function for the installed devices, and also can be viewed as a independent network controller. Anyway, ESP-M module provides many probabilities with the best price.
The user manual can be download from this link.
Now, this module can be ordered at many online shops, like Aliexpress, SmartArduino and banggood.
