Install a storage vendor which supports CSI snapshot in preview env

[jenting]

Is your feature request related to a problem? Please describe

Install a storage vendor which supports CSI snapshot in preview env.

Describe the behavior you'd like

The workspace team is working on backup/restoring user workspace files from the S3 to PVC volume snapshot/restore, this is to address epic #7901.

We're making the CSI snapshot/restore workable in the GCP environment. To make it easier for developer daily development, we should make the preview environment CSI snapshot/restore work as well.
However, we did a test that the local-path-provisioner doesn't support CSI snapshot/restore, therefore, we need to consider another storage vendor which supports CSI snapshot/restore, and this storage vendor needs to be installed in the preview environment as well (could be deployed as an optional by werft annotation).

Successful storge vendor criteria we consider:

• We could choose one of the storage vendor from https://kubernetes-csi.github.io/docs/drivers.html
• Support using the existing directory as storage if possible. If not, use an extra block device. (Since the current preview environment, we don't have enough storage for raw partition. It would be good if we could use the existing file system's directory as storage so we don't have to find an extra partition or block device as dedicated storage).
• Support CSI snapshot backup/restore without a problem.
  • Create Pod pod-1 with PVC pvc-1, and write some data to the PVC pvc-1.
  • Create VolumeSnapshot vs-1 for the PVC pvc-1, it can back up the snapshot success, and the VolumeSnapshotContent be created.
  • Create another Pod restore-pod-2 and PVC restore-pvc-2 with data source as VolumeSnapshot vs-1, check the PVC restore-pvc-2 with correct data content.
  • Delete Pod pod-1 and PVC pvc-1, and delete Pod restore-pod-2 and PVC restore-pvc-2.
  • Create another Pod pod-3 and PVC restore-pvc-3 with data source as VolumeSnapshot vs-1, check the PVC restore-pvc-3 with correct data content.

Describe alternatives you've considered

N/A

Additional context

#7901

We could consider the Longhorn as the storage vendor since it's the default storage of Harvester and it's easy to deploy within the Kubernetes cluster.

What we need to consider is that once we enable the preview environment with CSI snapshot/backup support

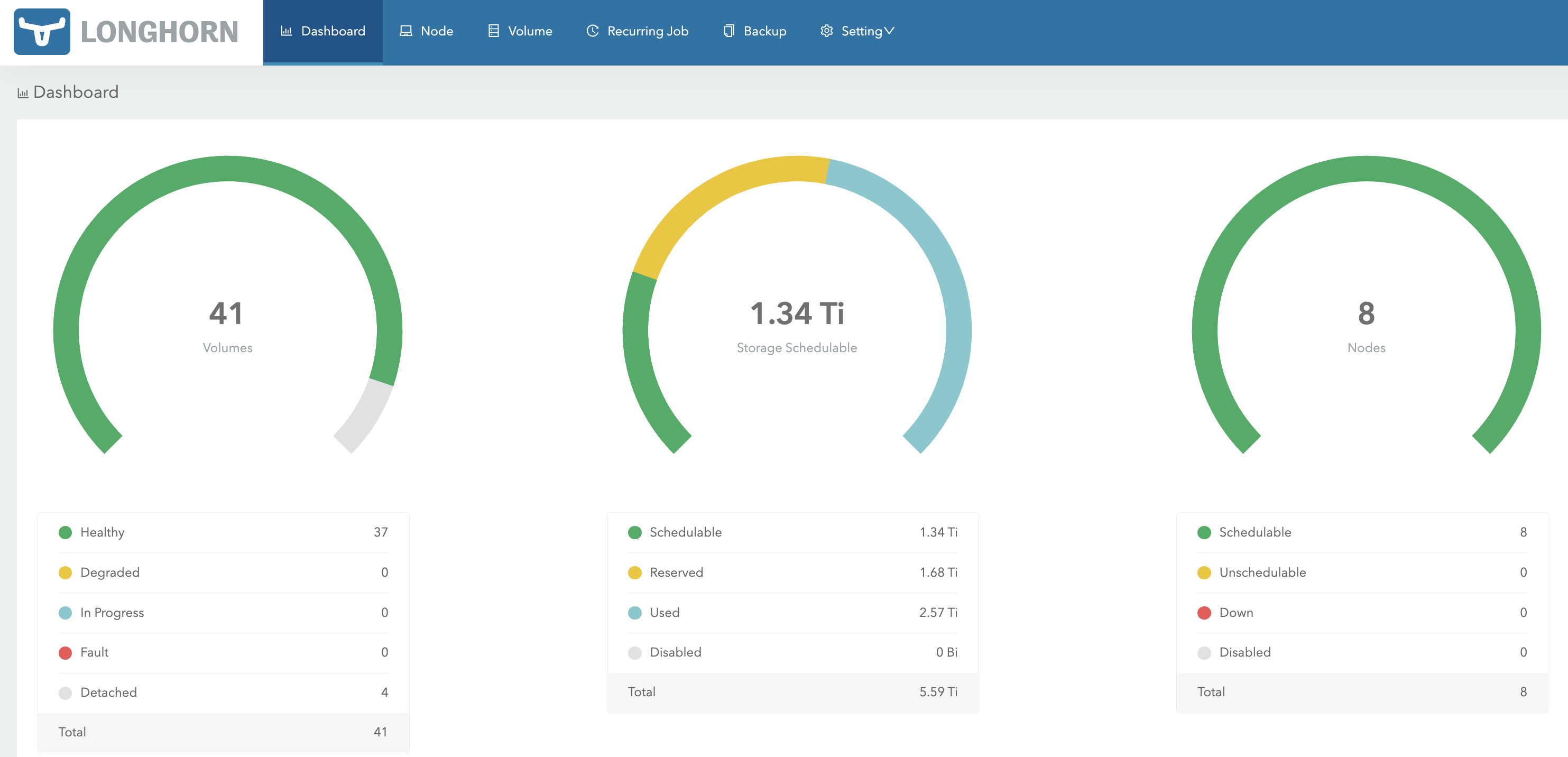

• Is the local disk storage enough? Here is the reference on the existing Harvester disk usage (the Longhorn uses local node's disk as storage, currently, Harvester per node is 5T).

• Should we perform a garbage collection on the orphan PVC, VolumeSnapshot, VolumeSnapshotContent? Will the replica data still exist on the local disk even if the k3s Pods be deleted? (Probably no because once the preview environment by cleaned up by the sweeper, the corresponding resource will be cleaned up as well.)

[meysholdt]

We could consider the Longhorn as the storage vendor since it's the default storage of Harvester and it's easy to deploy within the Kubernetes cluster.

From my side, I have no objections against Longhorn. It's good that you know it well @jenting and that on the Platform side we could collect a bit of experience with it, too.

Is the local disk storage enough
How much storage should be available per preview env? Currently, preview envs request a 200 GB root drive. I understand the newer workspace images are build for smaller root volumes, so that size can probably decrease when we upgrade to a newer workspace image.

With that being said, the Harvester cluster currently has a total storage capacity of slightly above 5TB, and we intend it to run up to 65 preview envs in parallel. Based on these numbers, a preview env may use up to 76 GB on average.

Because currently, disk are so much larger than the space that's used on them, we've set Longhorn's "Storage Over Provisioning Percentage" to 1000.

Should we perform a garbage collection on the orphan PVC, VolumeSnapshot, VolumeSnapshotContent? Will the replica data still exist on the local disk even the k3s Pods be deleted? (Probably no because once the preview environment by clean up by sweeper, the corresponding resource will be clean up as well.)

I assume the proposal is to install Longhorn inside every preview env VM and I assume the Gitpod (running inside a preview env) will not interact with the Longhorn instance that's part of Harvester.
Based on that assumption, you're right: There is nothing more to do here for garbage collection because the preview environment VM get's garbage collected already and everything running inside it (Longhorn) along with it. Nit: A Werft job does GC nowadays. We're retiring sweeper.

[meysholdt]

Proposed code changes:
Install Longhorn here via Cloud-init, just like Certmanager:

gitpod/.werft/vm/manifests.ts

Lines 323 to 326 in bd8f2c7

	kubectl apply -f /var/lib/gitpod/manifests/calico2.yaml
	kubectl apply -f /var/lib/gitpod/manifests/cert-manager.yaml
	kubectl apply -f /var/lib/gitpod/manifests/metrics-server.yaml

Disable the local-path-provisioner here by adding --disable local-storage

gitpod/.werft/vm/manifests.ts

Lines 289 to 303 in bd8f2c7

	/usr/local/bin/install-k3s.sh \\
	--token "1234" \\
	--node-ip "$(hostname -I | cut -d ' ' -f1)" \\
	--node-label "cloud.google.com/gke-nodepool=control-plane-pool" \\
	--container-runtime-endpoint=/var/run/containerd/containerd.sock \\
	--write-kubeconfig-mode 444 \\
	--disable traefik \\
	--disable metrics-server \\
	--flannel-backend=none \\
	--kubelet-arg config=/etc/kubernetes/kubelet-config.json \\
	--kubelet-arg feature-gates=LocalStorageCapacityIsolation=true \\
	--kubelet-arg feature-gates=LocalStorageCapacityIsolationFSQuotaMonitoring=true \\
	--kube-apiserver-arg feature-gates=LocalStorageCapacityIsolation=true \\
	--kube-apiserver-arg feature-gates=LocalStorageCapacityIsolationFSQuotaMonitoring=true \\
	--cluster-init

[jenting]

After thinking, Longhorn v1.2.4 CSI snapshot/backup current behavior backs up/restores from the PVC content to remote S3. Therefore, it relies on the S3 bucket now.

Since we want PVC content backup/restore located in the local disk only, we need to wait for the Longhorn v1.3.0 release (The date is approximately June 09, 2022). Therefore, I'd check other storage vendors such as Rook Ceph, OpenEBS, etc or waits for Longhorn v1.3.0 release.

[jenting]

Install the Longhorn v1.3.0-rc2 pre-release, and apply the storage class into the cluster in workspace pre env.

kind: VolumeSnapshotClass
apiVersion: snapshot.storage.k8s.io/v1beta1
metadata:
  name: longhorn-snapshot-vsc
driver: driver.longhorn.io
deletionPolicy: Delete
parameters:
  type: snap

Using the latest main branch, the backup thru. the volume snapshot controller works as expected.
But the restoring from backup does not work. Will check tomorrow.

[jenting]

The problem is that if the original PV/PVC was gone, even the VolumeSnapshot/VolumeSnapshotContent exists, restoring the PVC from the VolumeSnapshot fails because the Longhorn is unable to create the PV back. The error message of PVC is

  Warning  ProvisioningFailed    72s                driver.longhorn.io_csi-provisioner-869bdc4b79-rnp2r_52143314-b554-4361-818f-7267231ecee3  failed to provision volume with StorageClass "longhorn": rpc error: code = Internal desc = Bad response statusCode [500]. Status [500 Internal Server Error]. Body: [message=unable to create volume: unable to create volume pvc-c718f270-3672-488b-948d-7253611f4fad: failed to verify data source: cannot get client for volume pvc-750f59f7-81d4-4716-a55c-6eacc4bec5d6: engine is not running, code=Server Error, detail=] from [http://longhorn-backend:9500/v1/volumes]
  Warning  ProvisioningFailed    56s (x2 over 85s)  driver.longhorn.io_csi-provisioner-869bdc4b79-rnp2r_52143314-b554-4361-818f-7267231ecee3  failed to provision volume with StorageClass "longhorn": rpc error: code = Internal desc = Bad response statusCode [500]. Status [500 Internal Server Error]. Body: [detail=, message=unable to create volume: unable to create volume pvc-c718f270-3672-488b-948d-7253611f4fad: failed to verify data source: cannot get client for volume pvc-750f59f7-81d4-4716-a55c-6eacc4bec5d6: engine is not running, code=Server Error] from [http://longhorn-backend:9500/v1/volumes]
  Normal   Provisioning          24s (x7 over 85s)  driver.longhorn.io_csi-provisioner-869bdc4b79-rnp2r_52143314-b554-4361-818f-7267231ecee3  External provisioner is provisioning volume for claim "longhorn-system/test-restore-pvc"
  Warning  ProvisioningFailed    24s (x4 over 85s)  driver.longhorn.io_csi-provisioner-869bdc4b79-rnp2r_52143314-b554-4361-818f-7267231ecee3  failed to provision volume with StorageClass "longhorn": rpc error: code = Internal desc = Bad response statusCode [500]. Status [500 Internal Server Error]. Body: [code=Server Error, detail=, message=unable to create volume: unable to create volume pvc-c718f270-3672-488b-948d-7253611f4fad: failed to verify data source: cannot get client for volume pvc-750f59f7-81d4-4716-a55c-6eacc4bec5d6: engine is not running] from [http://longhorn-backend:9500/v1/volumes]
  Normal   ExternalProvisioning  9s (x8 over 85s)   persistentvolume-controller                                                               waiting for a volume to be created, either by external provisioner "driver.longhorn.io" or manually created by system administrator

longhorn/longhorn#4083

[kylos101]

Thank you for creating the bug with Longhorn, @jenting . 🙏

[jenting]

Moving back to schedule, working on other more important issues that would benefit our customers.

[kylos101]

@meysholdt does Platform have bandwidth to help own this issue? 🤔 🙏 As you can see, we're having trouble with Longhorn, and are considering other options.

[meysholdt]

@jenting @kylos101 if we try a storage vendor that implements the CSI, how can we test whether it fulfills all your requirements?

[kylos101]

@jenting can you share a detailed plan with @meysholdt for how you were doing Gitpod setup and testing of PVC in preview environments (after having installed CSI driver)?

For Gitpod setup, after having installed the CSI driver (not trivial, maturity varies) and preparing a storage-class, what else is needed, aside from enabling the PVC feature flag in Gitpod for a user to test? I assume you must configure the storage-class that we would like Gitpod to use, too.

For testing, I assume you were trying workspace start and workspace stop, when it does not work, look at the related PVC and snapshotter objects/events/logs.

[jenting]

@jenting @kylos101 if we try a storage vendor that implements the CSI, how can we test whether it fulfills all your requirements?

I've updated the criteria we require in this issue description.

Personally, I'd prefer the storage vendor which supports using the existing file system's directory as storage, because we don't have to create another partition or block device.

[kylos101]

Thank you, @jenting for the detailed description 🙏 ! I agree, using the existing file system as storage would be ideal 💡 .

[kylos101]

Should be all set, @meysholdt , @jenting updated this issue's description with supporting detail.

[jenting]

Install the Rook/Ceph, it works well and the CSI behavior is what we want. Here are the Rook/Ceph installation steps.

1. Create a new volume 30Gi (since it matches Gitpod's regular workspace default storage size) within the same namespace in the Harvester GUI.


2. Attach the volume to the existing VM.


3. Git clone the Rook/Ceph with single-node mode.

   $ git clone --single-branch --branch v1.9.5 https://github.com/rook/rook.git
   cd rook/deploy/examples

4. Edit operator.yaml, set ROOK_CSI_ENABLE_CEPHFS to false.

5. Install the Rook/Ceph.

   kubectl create -f crds.yaml -f common.yaml -f operator.yaml
   kubectl create -f cluster-test.yaml

6. Install the StorageClass

   cd csi/rbd
   sed -i 's/allowVolumeExpansion: true/allowVolumeExpansion: false/g' storageclass-test.yaml
   echo "volumeBindingMode: WaitForFirstConsumer" >> storageclass-test.yaml
   kubectl create -f storageclass-test.yaml

---

Test

1. Create Pod + PVC.

   cd csi/rbd
   kubectl create -f pod.yaml -f pvc.yaml

2. Write some data to PVC.

   kubectl exec -it pod/csirbd-demo-pod -- dd if=/dev/urandom of=/var/lib/www/html/16M count=1 bs=16M

3. Calculate the sha256sum.

   kubectl exec -it pod/csirbd-demo-pod -- sha256sum /var/lib/www/html/16M

4. Create VolumeSnapshotClass.

   kubectl create -f snapshotclass.yaml

5. Create VolumeSnapshot for PVC and waits for the VolumeSnapshot becomes Ready.

   kubectl create -f snapshot.yaml
   kubectl get vs/rbd-pvc-snapshot -w

6. Delete Pod + PVC.

   kubectl delete -f pod.yaml -f pvc.yaml

7. Restore PVC from VolumeSnapshot.

   kubectl create -f pvc-restore.yaml

8. Create a Pod to use the restored PVC.

   cp pod.yaml pod-restore.yaml
   sed -i 's/rbd-pvc/rbd-pvc-restore/g' pod-restore.yaml
   sed -i 's/csirbd-demo-pod/csirbd-demo-pod-restore/g' pod-restore.yaml
   kubectl create -f pod-restore.yaml

9. Check the content is there and correct.

   kubectl exec -it pod/csirbd-demo-pod-restore -- sha256sum /var/lib/www/html/16M

[kylos101]

Thank you, @jenting ! 🙏
